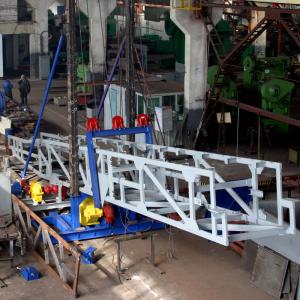

Mobile belt-type conveyor – shiploader is designed for loading of river and sea vessels with inclined positions from 3° to 18°, bulk and small single-piece cargoes with density up to 1.6 t/m3. If conveyor is equipped with chevron belt inclined position of conveyor can be regulated up to 26°. Conveyor parameters are defined basing on type of vessel, configuration of berthing facilities, vessel loading time. Equipping conveyor with wheeled system increases it’s mobility. To secure dust suppression during unloading, conveyor is equipped with telescopic discharging arm.
Technical characteristics:
| Conveyor’s belt width, mm | 800 | 1000 | 1200 |
| Conveyor’s length, m | from 16,5 to 35,0 | from 16,5 to 35,0 | from 16,5 to 35,0 |
| Productive capacity, t/h | from 200 to 500 | from 200 to 500 | from 200 to 500 |
| Belt travel speed, m/sec | from 1,0 to 1,8 | from 1,0 to 1,8 | from 1,0 to 1,8 |
| Conveyor’s maximum inclination angle, ° | 26 | 26 | 26 |
| Conveyor’s minimum inclination angle, ° | 3 | 3 | 3 |
